10000 kg Dual Axle Turntable 20 DC Military Toilet & Shower Container Carrier

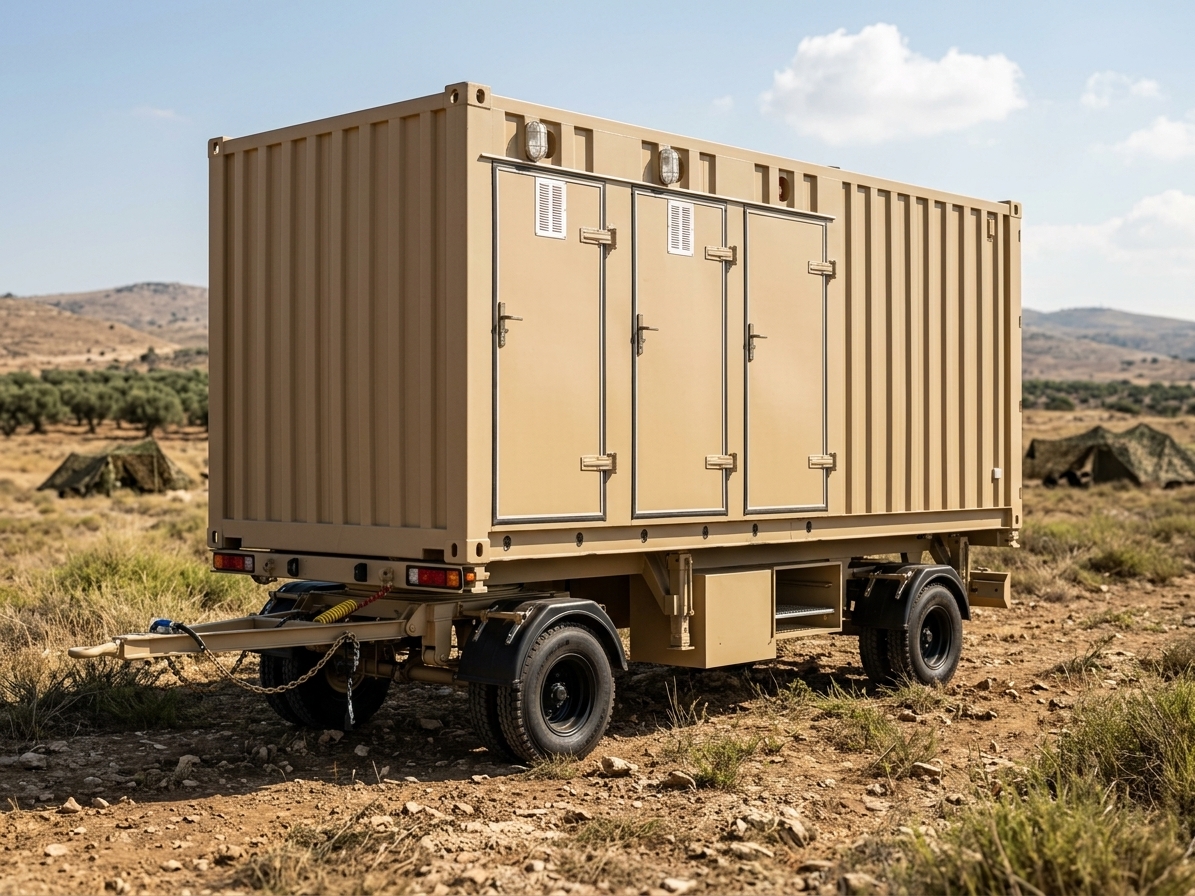

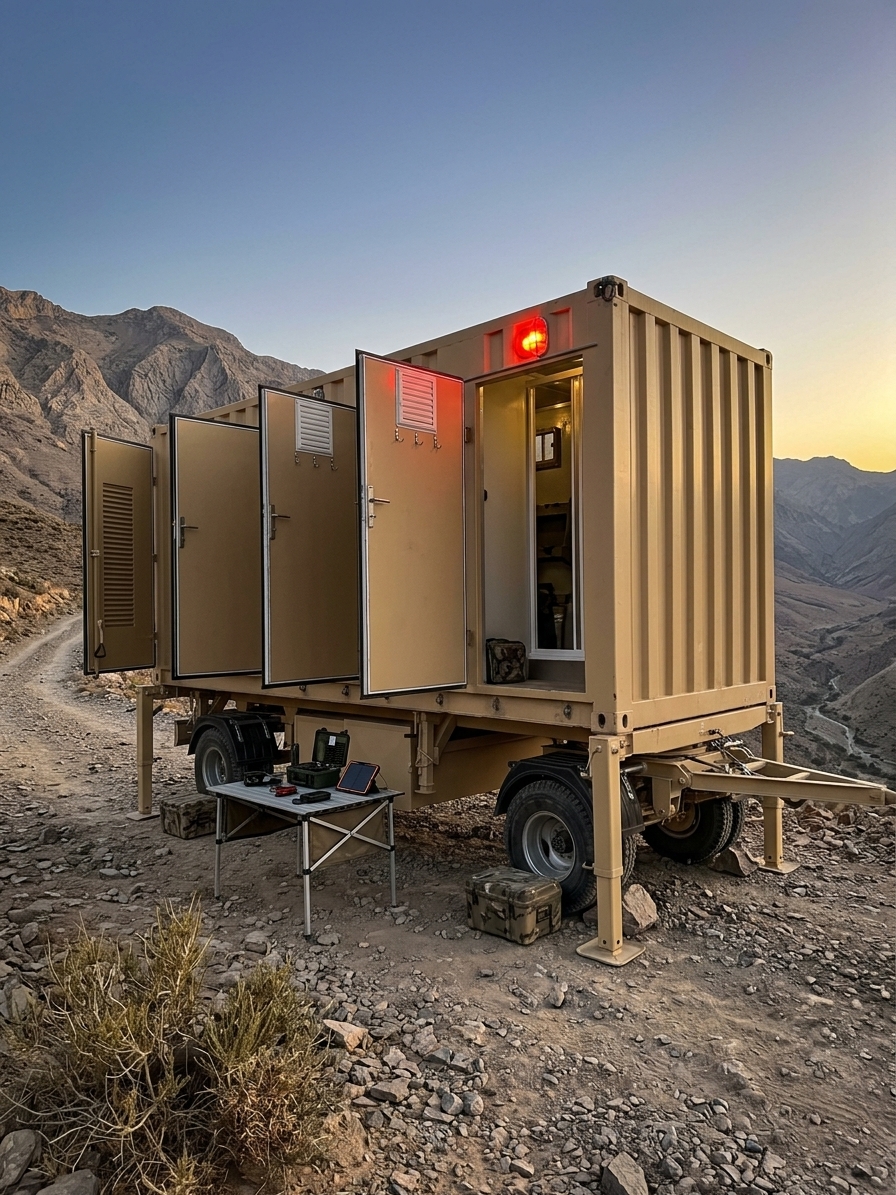

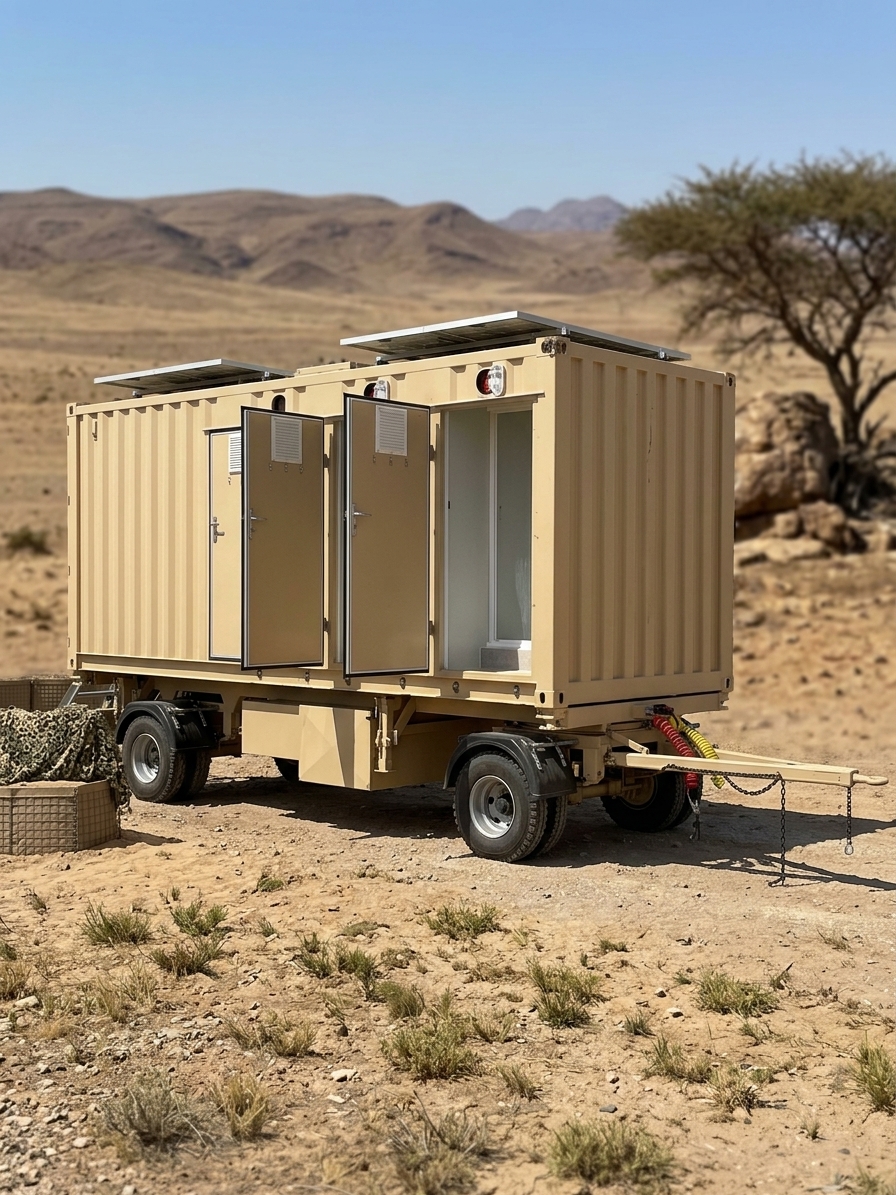

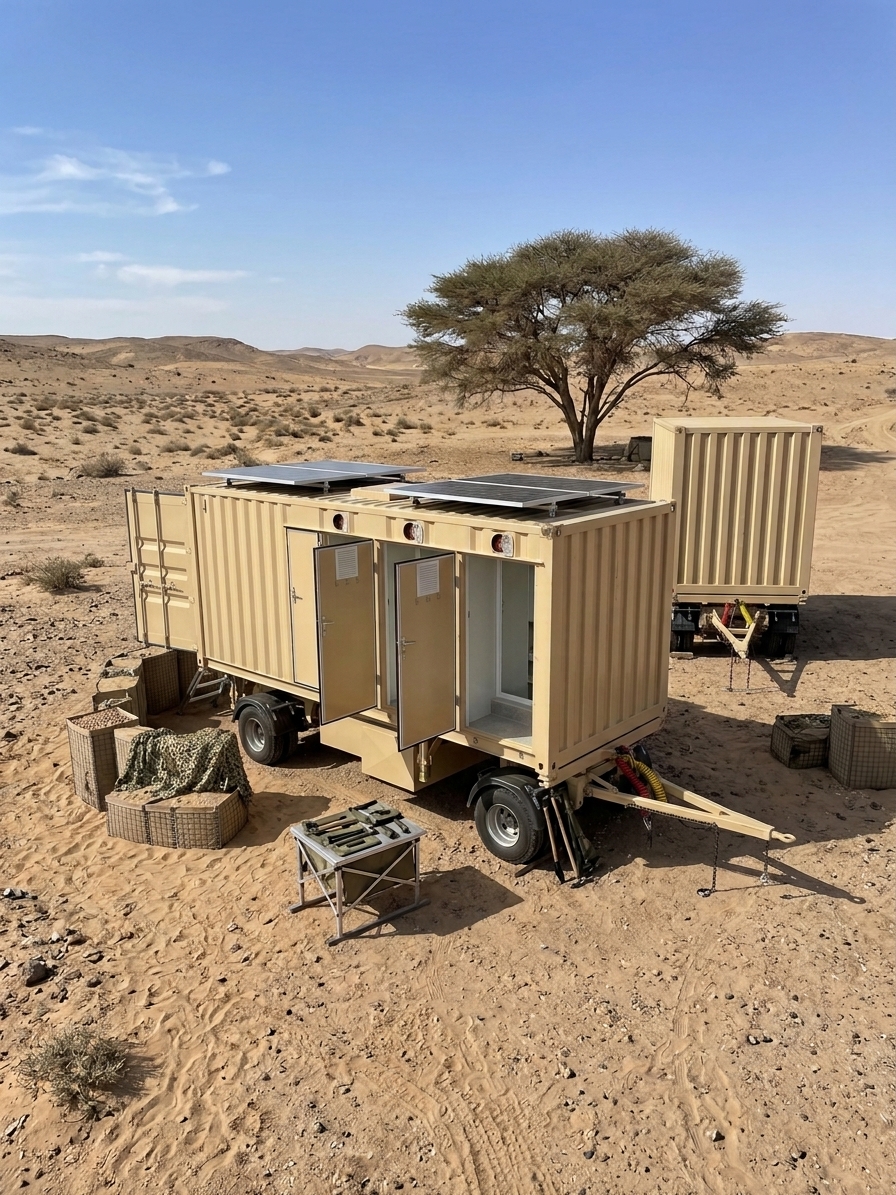

The 10,000 kg Dual Axle Turntable Military Toilet & Shower Container Carrier (10.000 kg Çift Dingil Döner Tablalı Askeri Mobil Tuvalet ve Banyo Konteyner Taşıyıcı Römork) is a heavy-duty tactical logistics platform designed to transport, level, and support standard 20 ft ISO containers (20 DC) configured as mobile field sanitation, shower, and decontamination units. Engineered with a 360-degree front turntable steering system, high-tensile structural steel, dual-line pneumatic air braking, and full compliance with STANAG and MIL-STD norms, this unit transfers zero hitch load to the towing truck and ensures rapid field deployment across unpaved military theaters. Engineered for tactical field sanitation logistics, the 10,000 kg Dual Axle Turntable Military 20 DC Container Carrier features a 360° front turntable steering mechanism, ISO 1161 twist-locks, dual-line pneumatic air brakes, 4-corner stabilization legs, and STANAG 4101 compliance, delivering an indestructible mobile platform for 20ft field toilet and shower containers.

Description
Order Form

1. Applicable Defense & Military Standards

STANAG 4101: Towing attachment interface, revolving drawbar eye, and coupling standards for tactical military vehicles.
STANAG 4007 / ISO 12098: Standardized 12-pin 24V NATO electrical connector interface supporting blackout and tactical lighting systems.
STANAG 4381: Tactical blackout lighting integration for covert field operations.
MIL-STD-810H: Comprehensive environmental testing compliance for extreme temperatures, sand/dust ingress, vibration damping, shock loading, and humidity resistance.
MIL-STD-209: Certified heavy-duty tie-down, lashing, and corner-lifting shackle points for tactical land transport and air mobility.
ISO 1161: Standardized heavy-duty corner fitting twist-locks for securing 20 ft ISO containers and shelters.
ECE R13: European safety compliance for dual-line pneumatic air braking integrated with EBS/ABS safety systems.

2. Technical Specifications & Features

Gross Vehicle Weight (GVW): 10,000 kg
Payload Capacity: ~6,500 kg – 7,000 kg (Optimized for 20 DC ISO containers outfitted with multi-cabin WC/shower modules, water heaters, and internal plumbing).
Tare Weight: ~3,000 kg – 3,500 kg
Container Compatibility: Fitted with 4x ISO 1161 retractable heavy-duty corner twist-locks engineered for standard 20 ft ISO Dry Containers (20 DC) and tactical sanitary shelter pods.
Steering & Axle Configuration: Dual-axle turntable design (Döner tablalı / Dönerli ön aks). The front axle rotates 360 degrees on a heavy-duty ball-bearing turntable ring, transferring zero vertical tongue load to the towing vehicle.
Axles & Suspension: 2x 6,000 kg capacity heavy-duty tactical axles fitted with parabolic leaf springs or air suspension and heavy-duty shock absorbers for high ground clearance.
Braking System: Dual-line pneumatic air braking system with WABCO/Knorr EBS 2S/2M, automatic slack adjusters, emergency breakaway safety valve, and spring parking brake chambers.
Stabilization & Leveling System: 4x heavy-duty drop-down mechanical/hydraulic corner leveling legs (destek ayakları) with wide footplates to eliminate sway and ensure exact horizontal alignment of sanitation facilities on uneven terrain.
Off-Road Wheels & Tires: Military-spec heavy-duty All-Terrain / Mud-Terrain tires (e.g., 12.5 R20 or 385/65 R22.5 tactical equivalents) mounted on 10-hole steel rims.
Coating & Paint Finish: Shot-blasted structural frame coated with 2 coats of anti-corrosive epoxy primer and a Chemical Agent Resistant Coating (CARC) / matte military acrylic topcoat in NATO green, desert tan, or black.
