Applicable Defense & Military Standards
-
STANAG 4101: Towing attachment interface and revolving drawbar eye standards for light tactical vehicles.
-
STANAG 4007 / ISO 12098: Standardized 12-pin 24V NATO electrical connector interface for tactical power and lighting controls.
-
STANAG 4381: Tactical lighting and blackout mode integration for covert field operations.
-
MIL-STD-810H: Environmental testing compliance for extreme desert temperatures, humidity, high-density sand/dust exposure, vibration, and shock resistance.
-
MIL-STD-209: Certified tie-down, lashing, and helicopter/crane sling lifting points.
-
ECE R13 / ECE R55: European mechanical overrun braking and coupling safety standards for lightweight O2/O1 category trailers.
2. Technical Specifications & Features
-

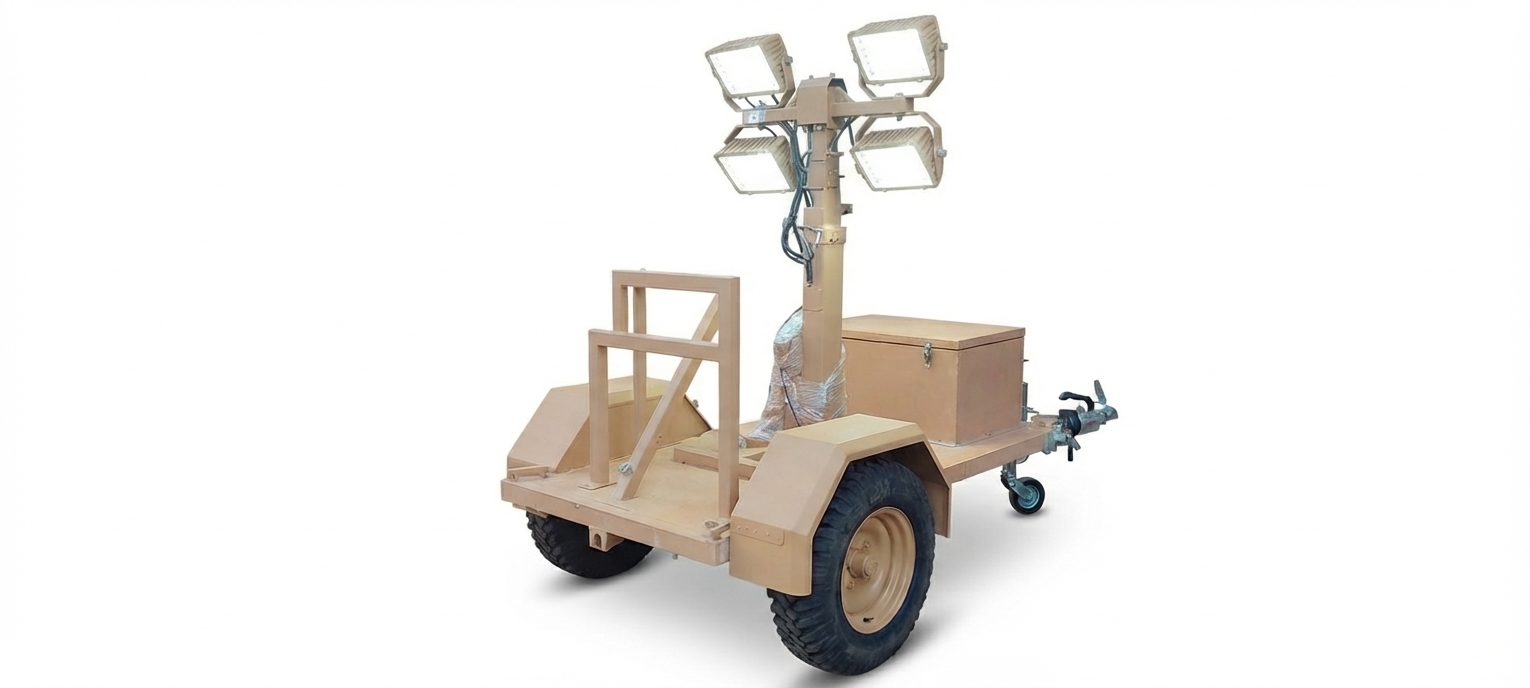

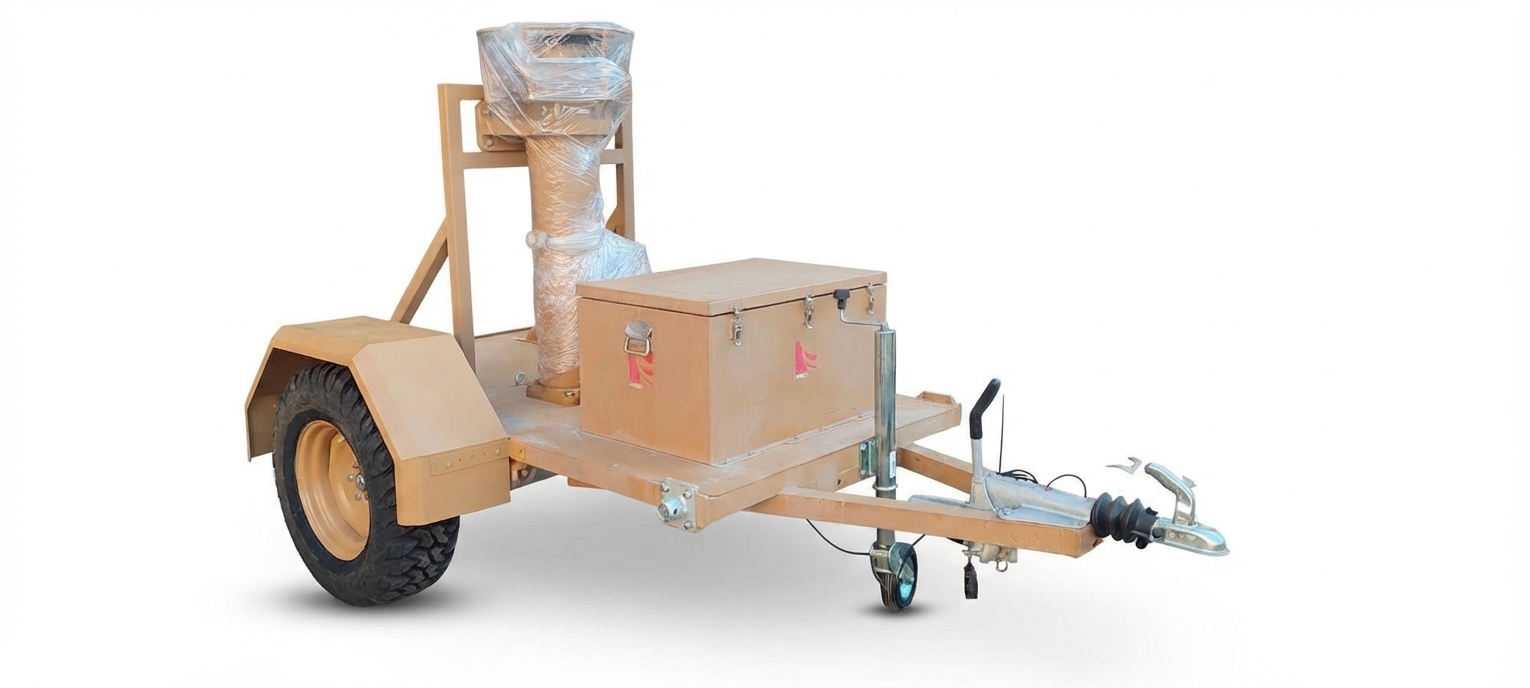

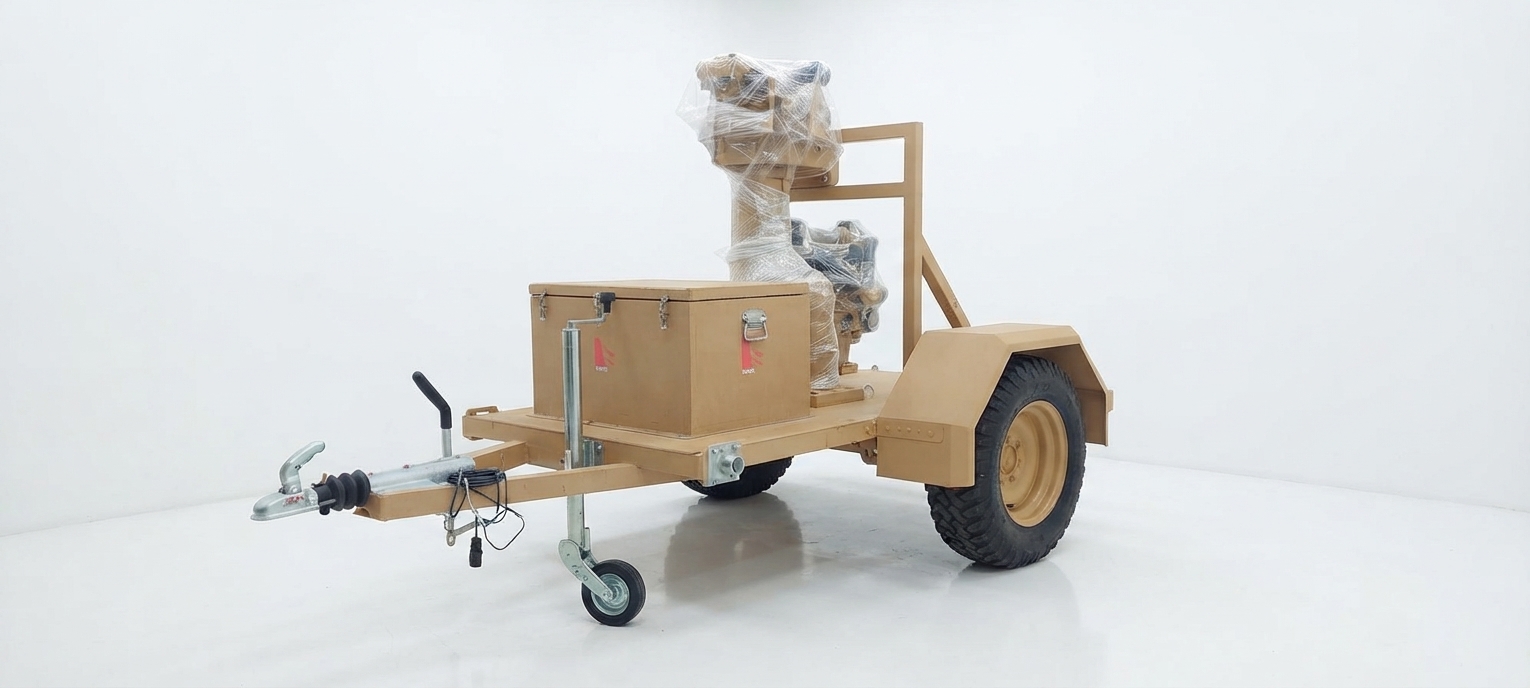

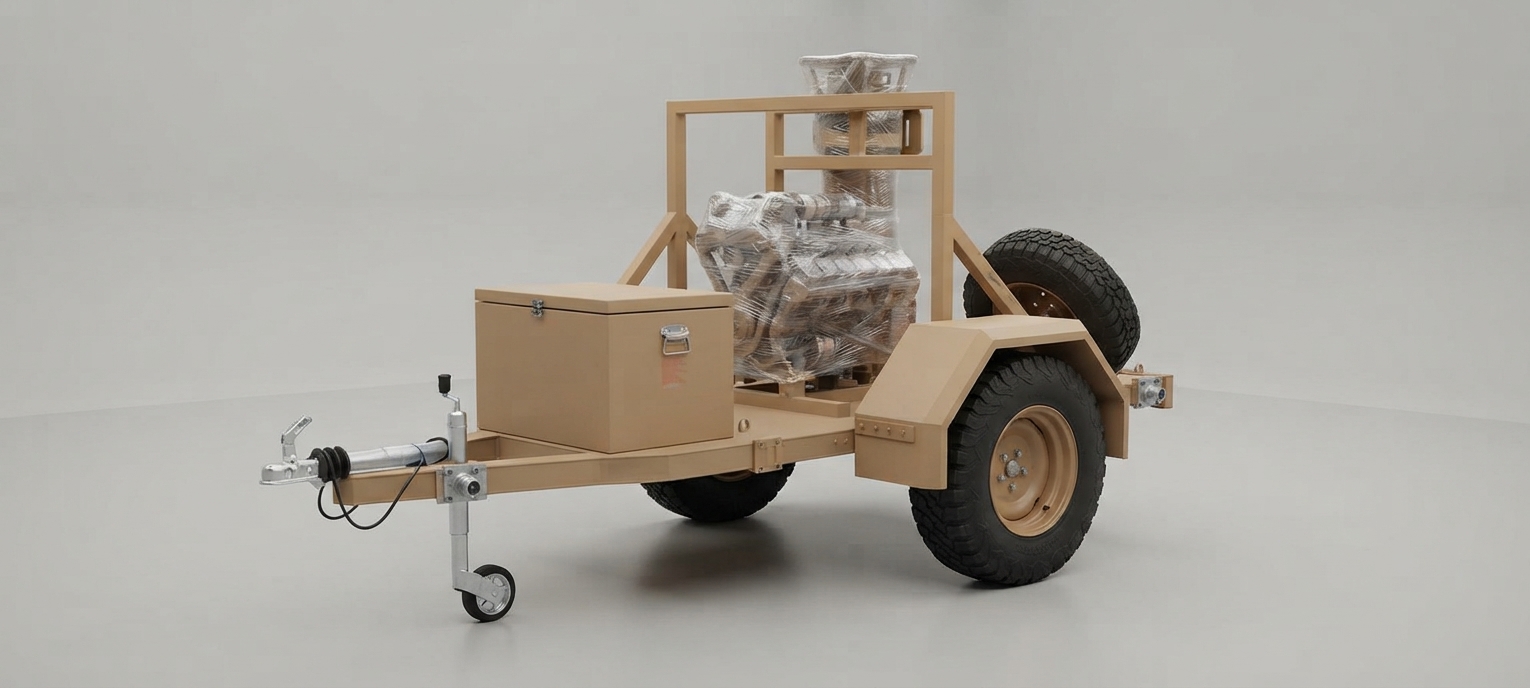

Gross Vehicle Weight (GVW): 1,050 kg (Tactical single-axle light utility platform)
-
Payload Capacity: ~550 kg – 650 kg (Designed to support telescopic lighting masts, LED floodlight clusters, and diesel generators)
-
Tare Weight: ~400 kg – 500 kg (Optimized using high-strength aluminum bodywork)
-
Running Gear & Axle: 1x 1,050 kg / 1,350 kg heavy-duty rubber-torsion single axle with high ground clearance for off-road mobility.
-
Coupling & V-Drawbar: High-strength V-drawbar (V-Tipi Çeki Oku) fitted with a 750 kg – 1,350 kg rated mechanical overrun braking coupling (AL-KO / Knott), integrated handbrake assembly, auto-reverse mechanism, and interchangeable STANAG 4101 / ball coupling capability.
-
Superstructure & Enclosure: High-grade, lightweight aluminum body (alüminyum gövde) for rust-free operation, finished in durable RAL 1011 (Sand/Tan) tactical camouflage coating.
-
Tires & Wheels: High-ground-clearance 245/70 R16 All-Terrain (A/T) off-road tires mounted on heavy-duty 5/6-bolt steel rims, providing low ground pressure across sand, mud, and rocky terrain.
-
Support & Leveling System: Heavy-duty fold-up jockey wheel and 4x drop-down corner stabilizer jacks to hold the telescopic light tower rigid under high wind loads.
