1. Applicable International Standards & Regulations
-
ECE R13: European safety standard for dual-line pneumatic air braking, EBS/ABS control, and Roll Stability Support (RSS) on O4 commercial trailers.
-
DIN 74051 / DIN 74052 (DIN 50): European standard for 50 mm heavy-duty drawbar coupling eye (Okbaşı) specifications.
-
2007/46/EC / (EU) 2018/858: EU whole vehicle type-approval standards for central axle commercial drawbar trailers.
-
DIN EN 12642 (Code XL): Structural cargo retention and load security standard for dry box superstructures.
2. Technical Specifications & Features
-
Gross Vehicle Weight (GVW): 18,000 kg (Maximum permissible laden mass for central tandem-axle O4 drawbar trailers)
-
Payload Capacity: ~12,500 kg – 13,200 kg
-
Tare Weight: ~4,800 kg – 5,500 kg (Depending on internal height and box dimensions)
-

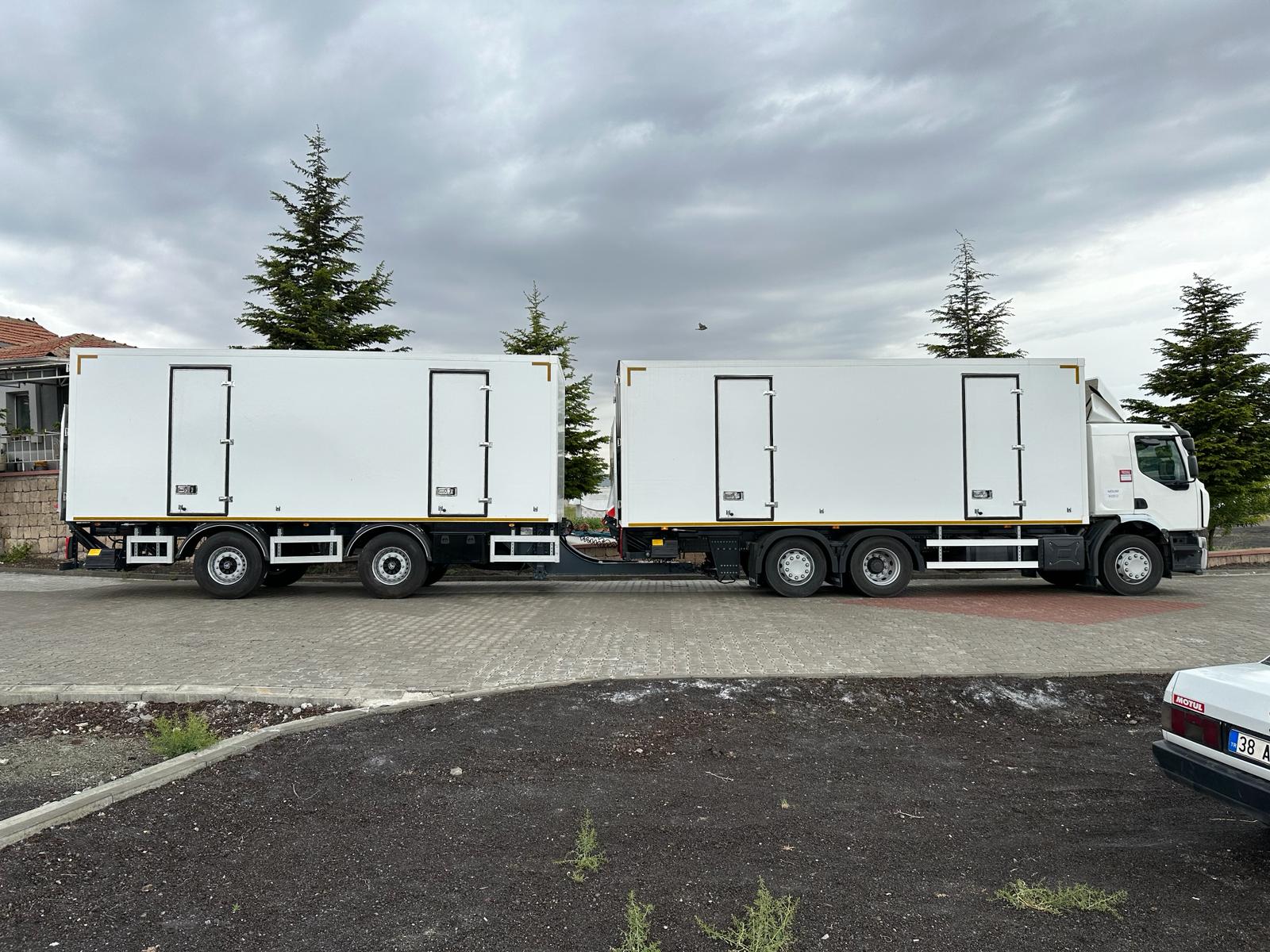

Drawbar & Coupling: Rigid central drawbar fitted with a DIN 50 mm heavy-duty revolving drawbar eye (DIN 50 Halka Okbaşı) for truck coupling.
-
Running Gear & Axles: 2x 9,000 kg heavy-duty central tandem axles with heavy-duty air suspension and lifting valve options.
-
Braking System: WABCO EBS 2S/2M (2 Sensors / 2 Modulators) dual-line pneumatic air braking system with RSS (Roll Stability Support), spring parking brake chambers, and automatic slack adjusters.
-

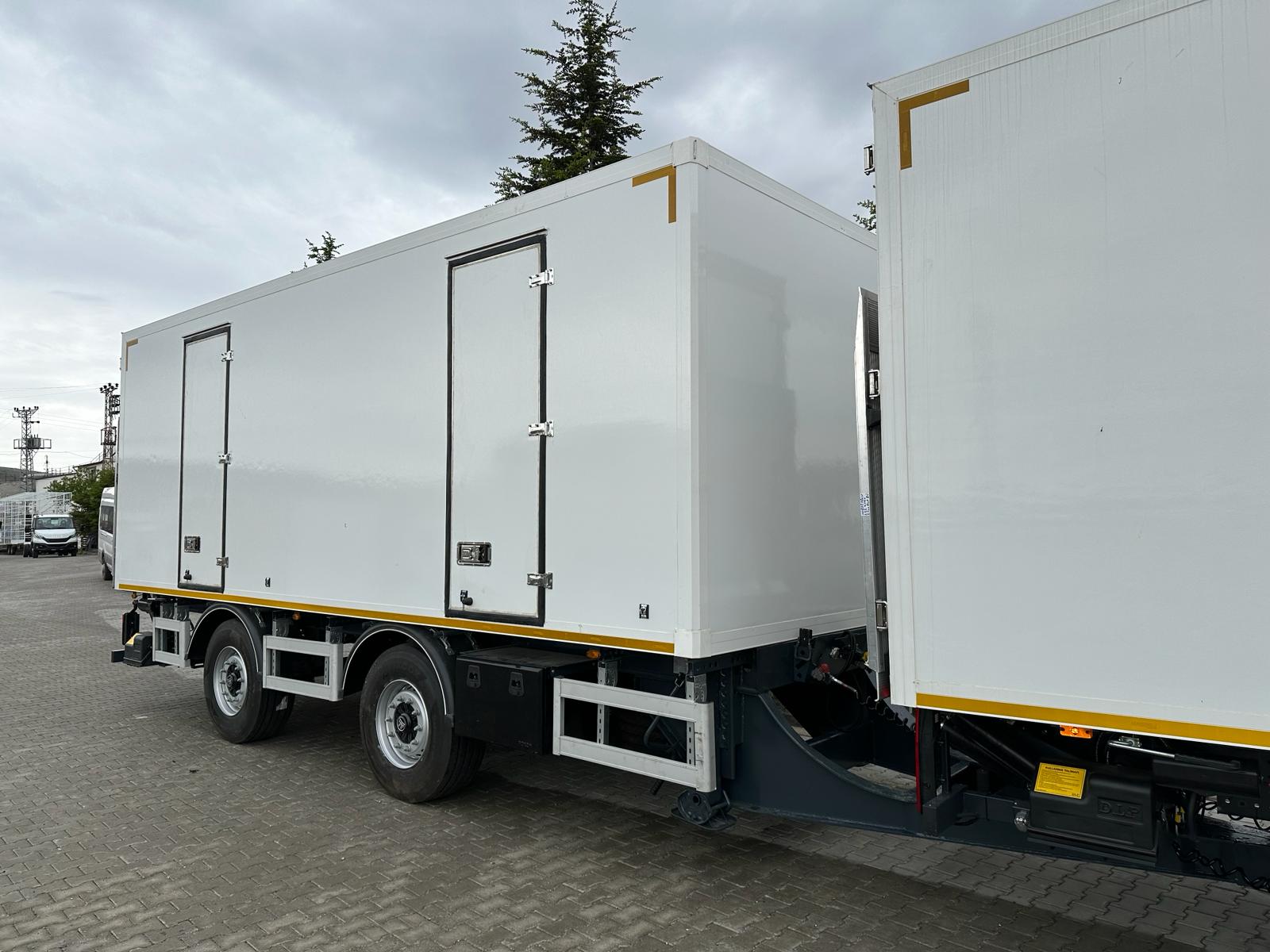

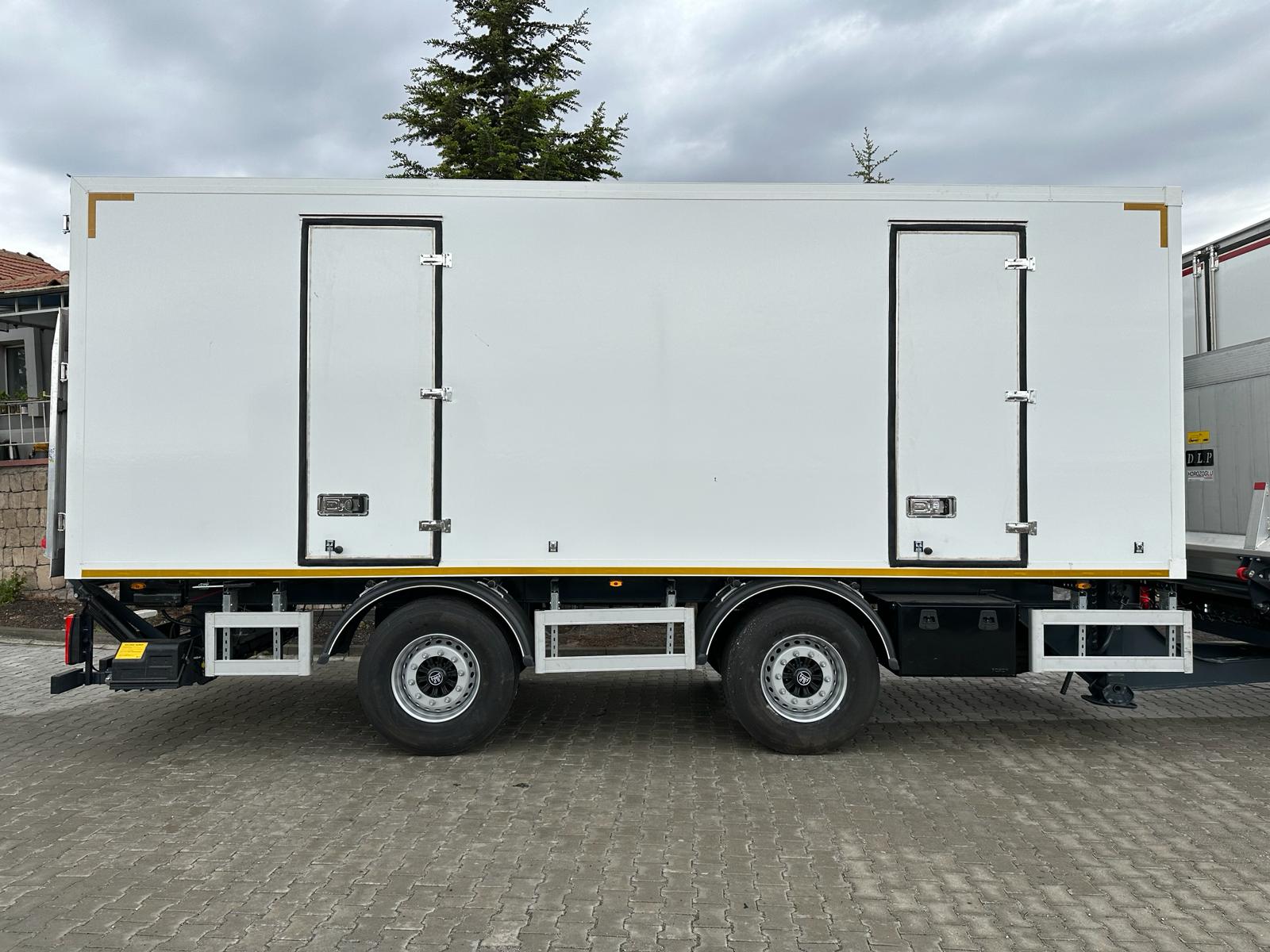

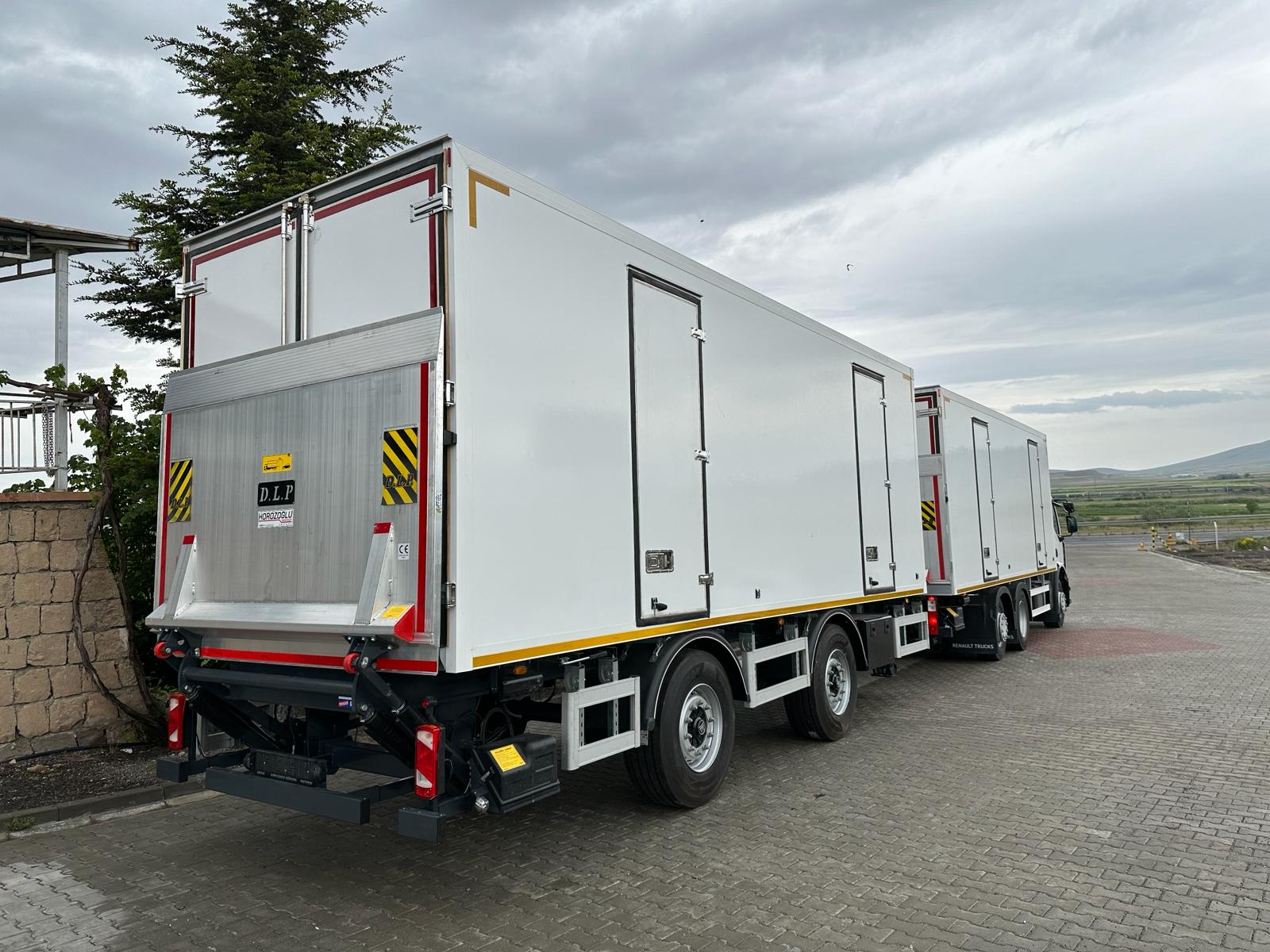

Superstructure & Exterior (Kuru Yük CTP Kasa): High-impact CTP (Glass Fiber Reinforced Plastic / GRP) composite panels with anodized extruded aluminum corner profiles for maximum structural rigidity and sleek commercial aesthetics.
-
Flooring: High-durability 21 mm heavy-duty Plywood coated with a wear-resistant, anti-slip epoxy surface finish.
-
Tires & Wheels: 385/65 R22.5 heavy-duty commercial tires and steel rims (5 + 1 spare tire setup). Includes an under-chassis basket-type spare tire carrier (stepne tutucu).
-
Mudguards & Protection: Heavy-duty thermoplastic full plastic mudguards (plastik çamurluk) with anti-spray mudflaps.
-
Support & Parking: Heavy-duty two-speed mechanical landing gear / parking legs (park ayakları) at the front and drop-down rear stabilizer legs.
