1. Applicable International Standards & Regulations
-
ECE R13: European safety standard for air braking, EBS/ABS, and Roll Stability Support (RSS) systems on O4 commercial trailers.
-
2007/46/EC / (EU) 2018/858: European Union vehicle type-approval standards for commercial trailers.
-
ISO 1185 / ISO 3731 / ISO 12098: Standardized 24V electrical connectors and lighting interface regulations.
-
DIN EN 12642 (Code XL): Structural cargo securing and load retention standards.
2. Technical Specifications & Features
-
Gross Vehicle Weight (GVW): 18,000 kg (Maximum permissible laden mass for 2-axle O4 drawbar trailers under EU road regulations)
-
Payload Capacity: ~13,500 kg – 14,200 kg
-
Tare Weight: ~3,800 kg – 4,500 kg (Depending on platform length and frame configuration)
-

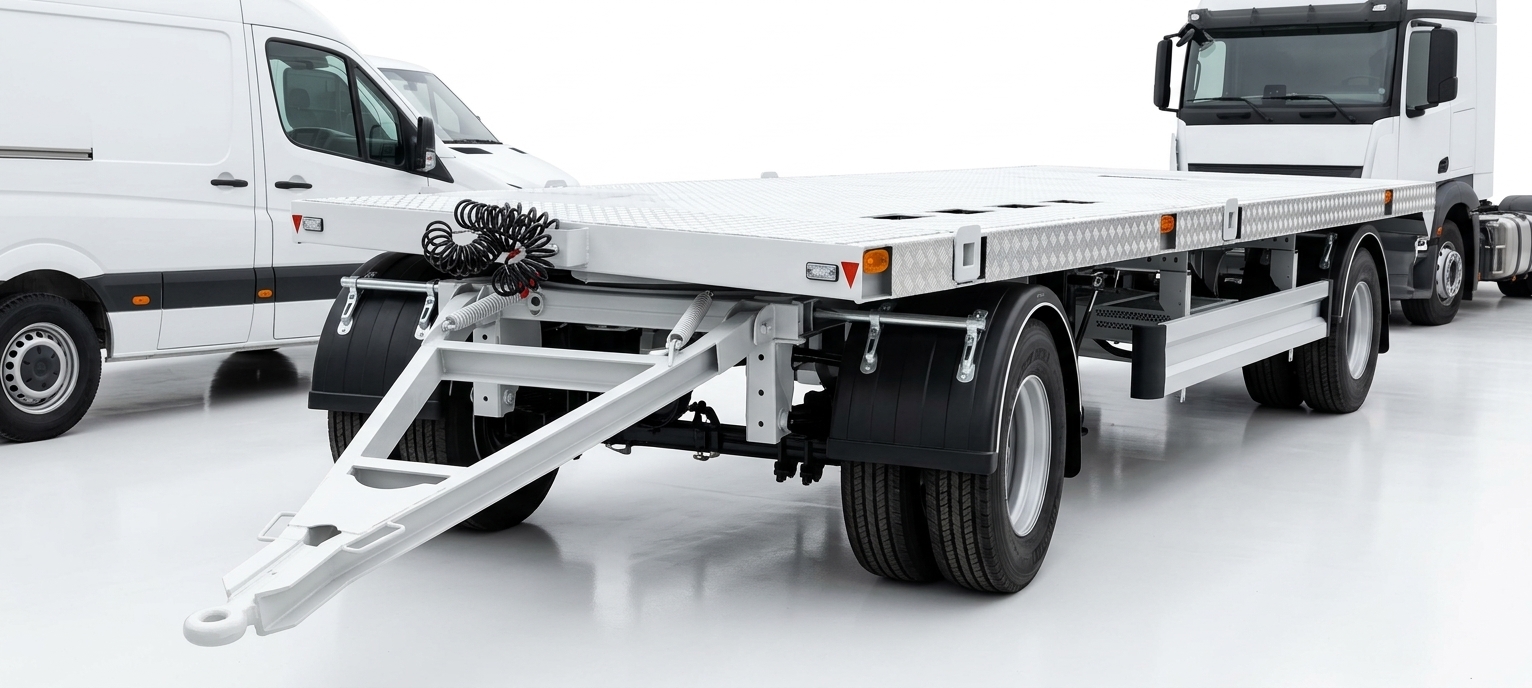

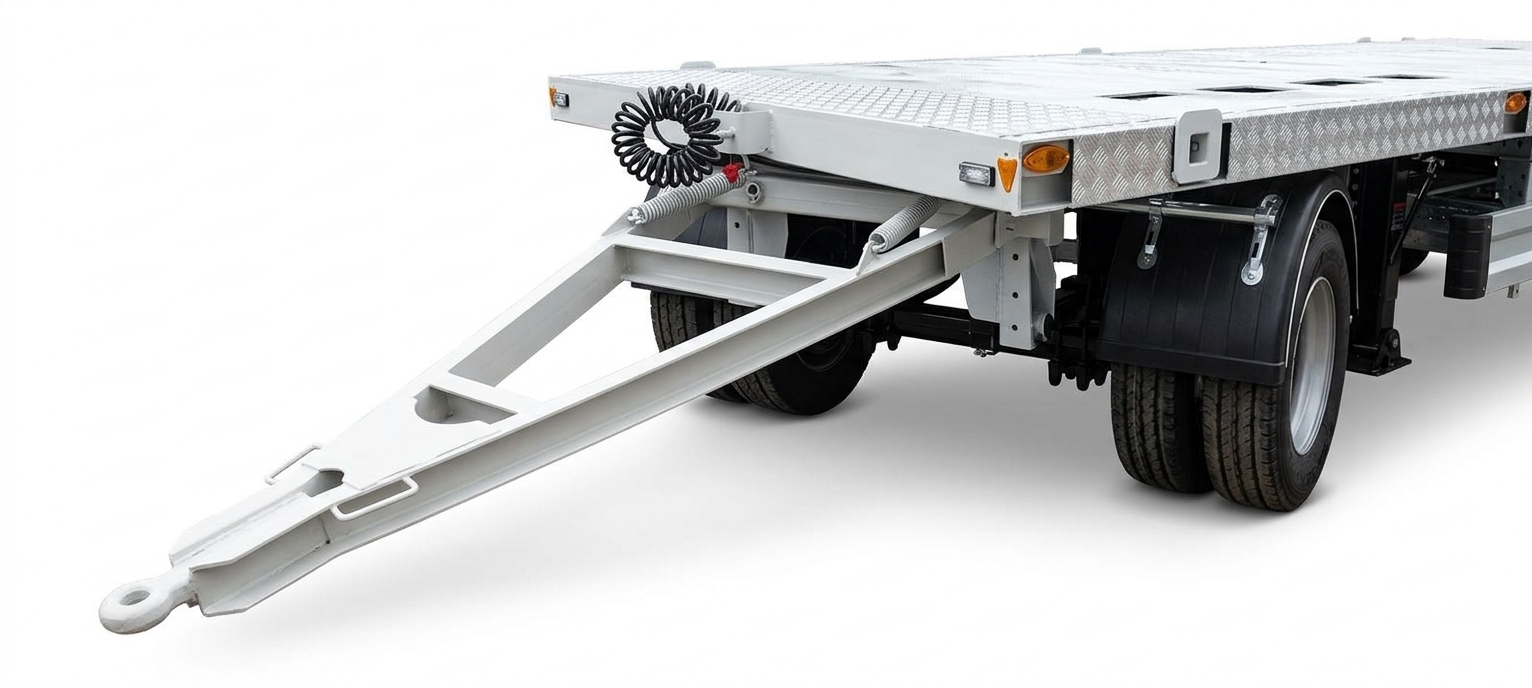

Turntable Assembly: 360-degree rotatable, heavy-duty ball-bearing slewing ring (Turntable ring) with a rigid structural drawbar.
-
Axles & Running Gear: TRAX Brand 2x 9,000 kg / 10,000 kg capacity heavy-duty axles with high-durability disc or drum brakes.
-
Suspension System: Pneumatic air suspension with automatic height leveling valve (Raise/Lower valving for dock loading adaptation).
-
Braking System: WABCO EBS 2S/3M (2 Sensors / 3 Modulators) dual-line air braking system, integrated RSS (Roll Stability Support), automatic slack adjusters, and spring parking brake chambers.
-
Deck & Flooring: Anti-slip, high-tensile Aluminum Checker Plate (Tread Plate) flooring for maximum surface durability and corrosion protection.
-
Electrical & Lighting: SABA Brand 24V Full-LED lighting set, including side marker lamps, multi-function rear light clusters, license plate lamps, and fully shielded wiring harnesses.
-
Chassis & Finish: High-tensile S355 / S700 MC structural steel frame, fully hot-dip galvanized or coated with heavy-duty industrial epoxy primer and polyurethane topcoat.
