1. Applicable Defense & Military Standards
-
STANAG 4101: Towing attachment interface, revolving drawbar eye, and coupling standards for tactical vehicles.
-
STANAG 4007 / ISO 12098: Standardized 12-pin 24V NATO electrical connector interface for tactical and blackout lighting.
-
STANAG 4381: Tactical blackout lighting system integration for covert field operations.
-
MIL-STD-810H: Environmental testing compliance for extreme climate conditions, humidity, sand/dust, vibration, and shock resistance.
-
MIL-STD-209: Heavy-duty tie-down, lashing, and air-transport/helicopter lifting shackle points.
-
ISO 1161: Corner fitting standards for secure locking of 20 ft ISO containers and shelters.
-
ECE R13: European safety standard for dual-line pneumatic air braking with EBS/ABS and Roll Stability Support (RSS).
2. Technical Specifications & Features
-
Container Compatibility: Designed for 20 ft ISO Dry Containers (20 DC), military shelters, and tactical workshop modules.
-
Gross Vehicle Weight (GVW): 18,000 kg – 24,000 kg (Depending on single or tandem central-axle configuration).
-
Payload Capacity: Up to 15,000 kg – 18,000 kg net container payload.
-
Locking Mechanism: 4x heavy-duty ISO 1161 retractable/corner twist locks integrated into the structural cross-members.
-

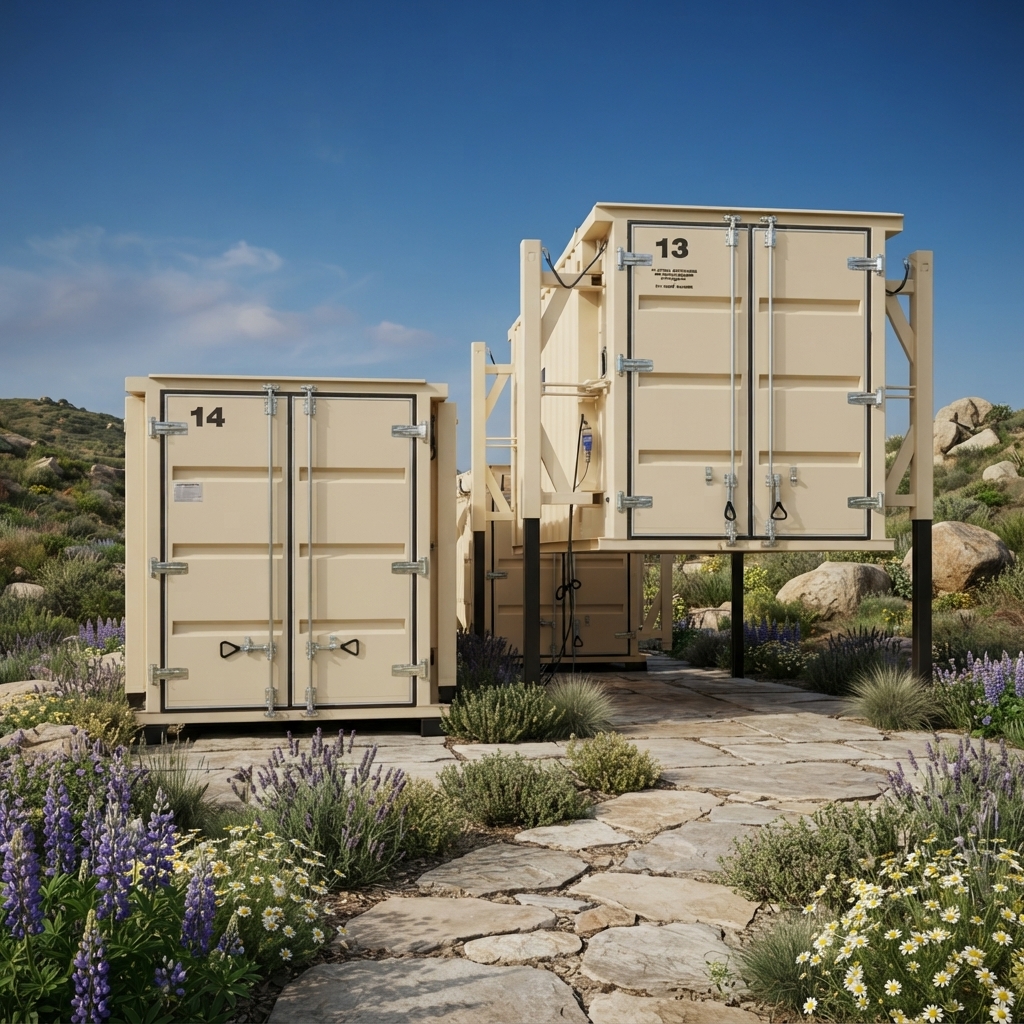

Hydraulic Stabilizer Leg System: 4x heavy-duty independent hydraulic leveling legs (Hidrolik Ayaklı) mounted at the chassis corners, allowing precise ground balance, sway control, and self-leveling during field operation or shelter loading.
-
Power Unit for Hydraulics: Integrated onboard 24V electro-hydraulic power pack (PTO or auxiliary battery-operated) with side manual override control levers.
-
Braking System: Dual-line pneumatic air braking with WABCO/Knorr EBS 2S/2M, automatic slack adjusters, and spring parking brake chambers.
-
Coating & Paint Finish: Shot-blasted surface treated with 2 coats of anti-corrosive epoxy primer and a chemical-agent-resistant (CARC) / matte military acrylic topcoat in NATO green, tan, or black.
