1. Technical Specifications & Dimensions
-
-
External Dimensions: Length: 6,058 mm (19'10.5") × Width: 2,438 mm (8') × Height: 2,591 mm (8'6")
-
Internal Dimensions: Approx. Length: 5,898 mm × Width: 2,352 mm × Height: 2,393 mm
-
Capacity / Volume: ~33.2 m³ (Cubic Meters)
-
Tare Weight: ~2,300 kg – 2,750 kg (depending on reinforcement specs)
-
Maximum Payload Capacity: Up to 28,200 kg
-
Stacking Strength: Engineered for multi-level stacking (up to 9 tiers high) under full load during maritime or overland transport
2. Military & NATO Compliance Features-
Robust Framework: Heavy-gauge Corten steel construction complying with ISO 668, ISO 830, ISO 1161 (Corner Castings), and ISO 1496-1 standards.
-
International Certifications: Certified with CSC (Convention for Safe Containers) and CCC for global intermodal transport.
-
Securing & Lashing: High-capacity internal lashing rings (rated up to 1,500 kg each) strategically positioned along top and bottom longitudinal rails for secure cargo restraint.
-

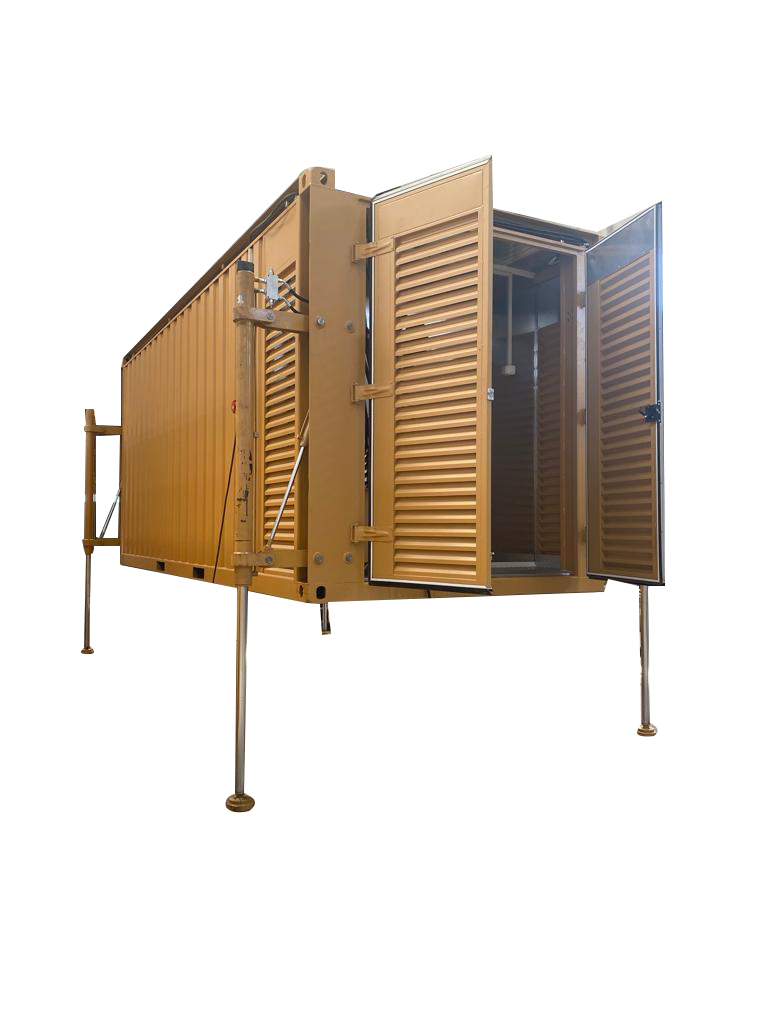

Heavy-Duty Doors: Double-leaf or single-leaf reinforced cargo doors equipped with heavy-duty locking gear, rubber weather-stripping gaskets, and grease-fitted hinges for waterproof and dustproof sealing.
-
Surface Protection & Coating: High-durability anti-corrosion epoxy primer and polyurethane finish. Available in standard commercial colors or specialized military IR-reflective camouflage coatings (such as RAL 6031 IR CARC).
3. Key Applications & Customization Options
-
Military Logistics & Ammunition Storage: Safe transport and field storage of munitions, ordnance, and tactical gear.
-
Mobile Workshop & Maintenance Units: Easily modifiable to house heavy-duty workbenches, power generators, and pneumatic tool systems.
-
Command & Control (C2) / Shelter Cabins: Suitable for insulation, HVAC integration, and CBRN filtration retrofits for mobile headquarters.
-
-
