1. Applicable Defense & Military Standards
-
STANAG 4101: Towing attachment interface, revolving drawbar eye, and coupling standards for tactical military tow vehicles.
-
STANAG 4007 / ISO 12098: Standardized 12-pin 24V NATO electrical connector interface for tactical lighting and blackout modes.
-
STANAG 4381: Tactical blackout lighting integration for covert operational positioning.
-
MIL-STD-810H: Environmental testing compliance for shock, vibration, thermal extremes, sand/dust ingress, and salt-fog corrosion.
-
MIL-STD-209: Certified tie-down, lashing, and helicopter sling / crane lifting shackle points for air and land mobility.
-
MIL-STD-461: Electromagnetic compatibility (EMC) compliance to eliminate interference with onboard radar receivers and sensors.
-
ECE R13 / ECE R55: Dual-line pneumatic air-braking (or heavy-duty overrun braking) and coupling compliance for O2/O3 category tactical trailers.

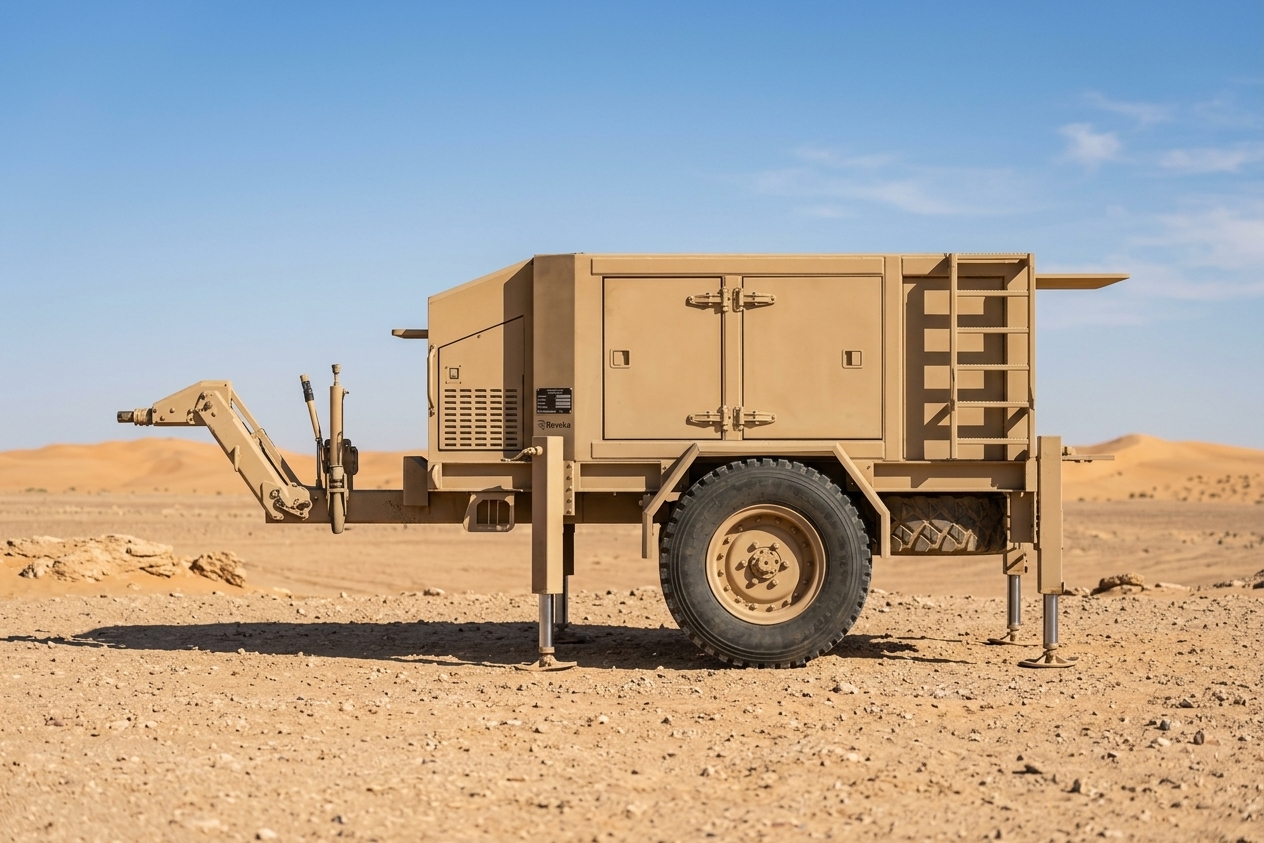

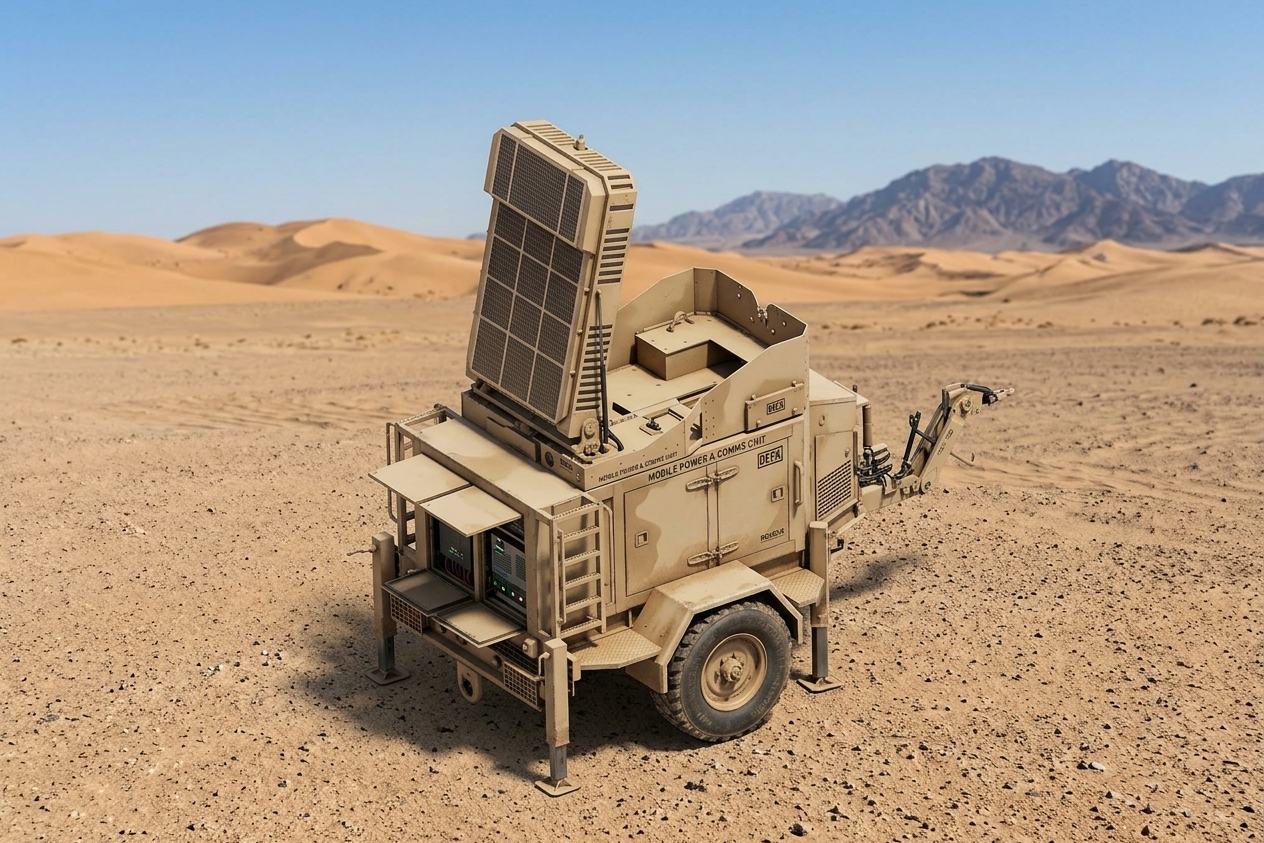

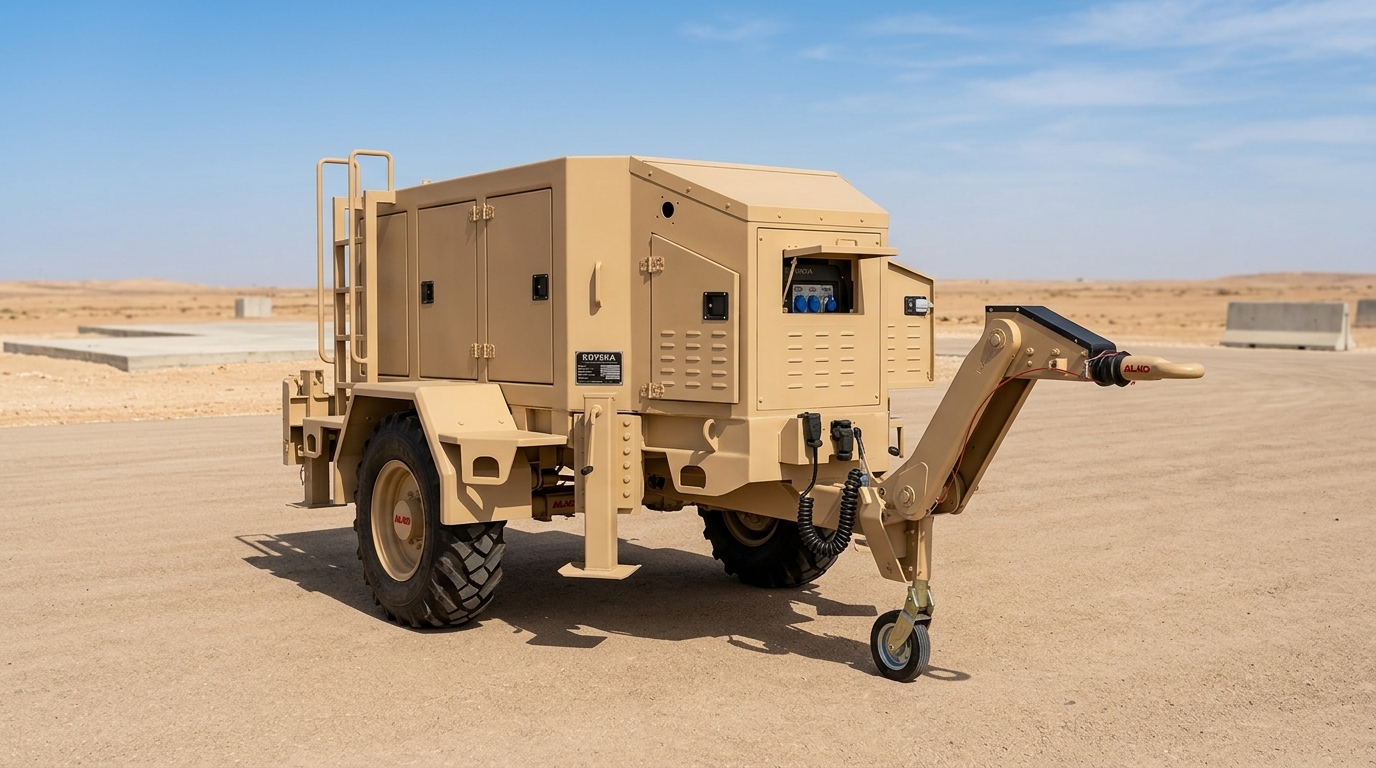

2. Technical Specifications & Features
-
Gross Vehicle Weight (GVW): 3,500 kg (High-mobility single-axle heavy platform)
-
Payload Capacity: ~2,200 kg – 2,400 kg (Optimized for radar masts, dish assemblies, power distribution units, and transmitter shelters)
-
Tare Weight: ~1,100 kg – 1,300 kg
-
Running Gear & Axle: 1x 3,500 kg / 4,000 kg heavy-duty single axle fitted with custom vibration-damping air suspension or heavy-duty rubber-torsion assembly, engineered specifically to protect delicate electronic radar components.
-
Braking & Coupling: Dual-line pneumatic air brakes (with WABCO EBS) or 3,500 kg heavy-duty overrun brake system with auto-reverse, coupled to a STANAG 4101 adjustable drawbar.
-
Precision Leveling System: 4x heavy-duty corner hydraulic or mechanical outrigger jacks (destek ayakları) with fine-adjustment capabilities and wide ground pads for exact horizontal alignment of radar arrays on soft or uneven terrain.
-
Off-Road Wheels & Tires: Oversized off-road run-flat or All-Terrain (A/T, M/T) tires (e.g., 265/75 R16 or military-spec equivalents) mounted on heavy-duty steel rims for high ground clearance and mobility through mud and sand.
-
Surface Coating & Finish: Shot-blasted steel frame coated with 2 coats of anti-corrosive epoxy primer and a Chemical Agent Resistant Coating (CARC) / matte military acrylic topcoat in NATO green, desert tan, or radar-absorptive black.
