1. Applicable Defense & Military Standards
-
STANAG 4101: Standardized towing attachment interface and revolving drawbar eye for seamless coupling with NATO tactical towing vehicles.
-
STANAG 4007 / ISO 12098: Standardized 12-pin 24V NATO electrical connector interface supporting blackout and tactical lighting modes.
-
STANAG 4381: Tactical blackout lighting integration for covert field operations.
-
MIL-STD-810H: Comprehensive environmental testing compliance for extreme temperatures, sand/dust ingress, vibration damping, shock resistance, and humidity.
-
MIL-STD-209: Certified heavy-duty tie-down, lashing, and corner-lifting shackle points for land transport and air/helicopter sling operations.
-
MIL-STD-1366: Transportability criteria for military land transport equipment.
-
ECE R13: European safety standard for dual-line pneumatic air-braking and EBS/ABS safety system integration.

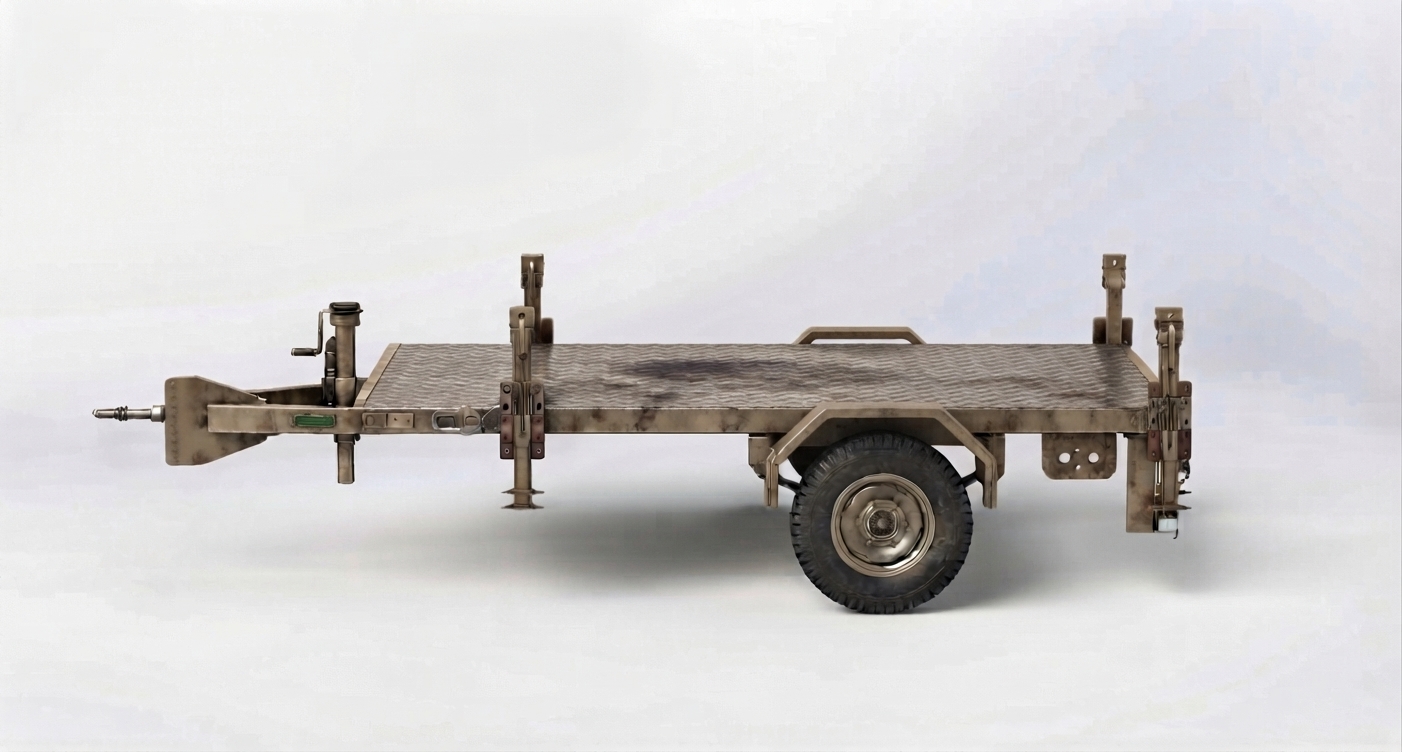

2. Technical Specifications & Features
-
Gross Vehicle Weight (GVW): 4,000 kg
-

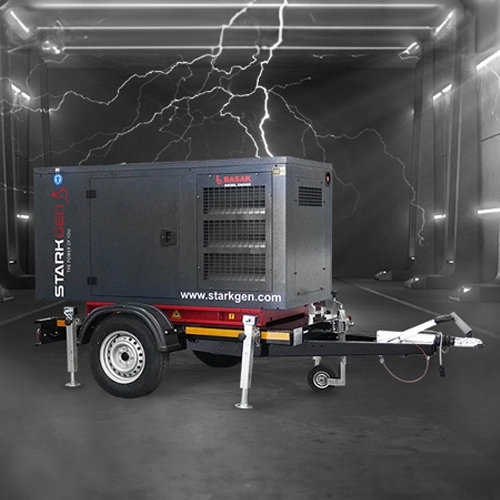

Payload Capacity: ~2,500 kg – 2,700 kg (Optimized for 80 kVA – 180 kVA tactical mobile diesel generators and fuel cell units)
-
Tare Weight: ~1,300 kg – 1,500 kg
-
Running Gear & Axle: 1x 4,500 kg / 5,000 kg heavy-duty single tactical axle with reinforced parabolic leaf springs or air suspension, engineered for high ground clearance and generator vibration isolation.
-
Drawbar & Coupling: Heavy-duty height-adjustable rigid tactical drawbar fitted with a STANAG 4101 revolving eye.
-
Braking System: Dual-line pneumatic air braking system with EBS/ABS control, automatic slack adjusters, emergency breakaway safety valve, and spring parking brake chambers.
-

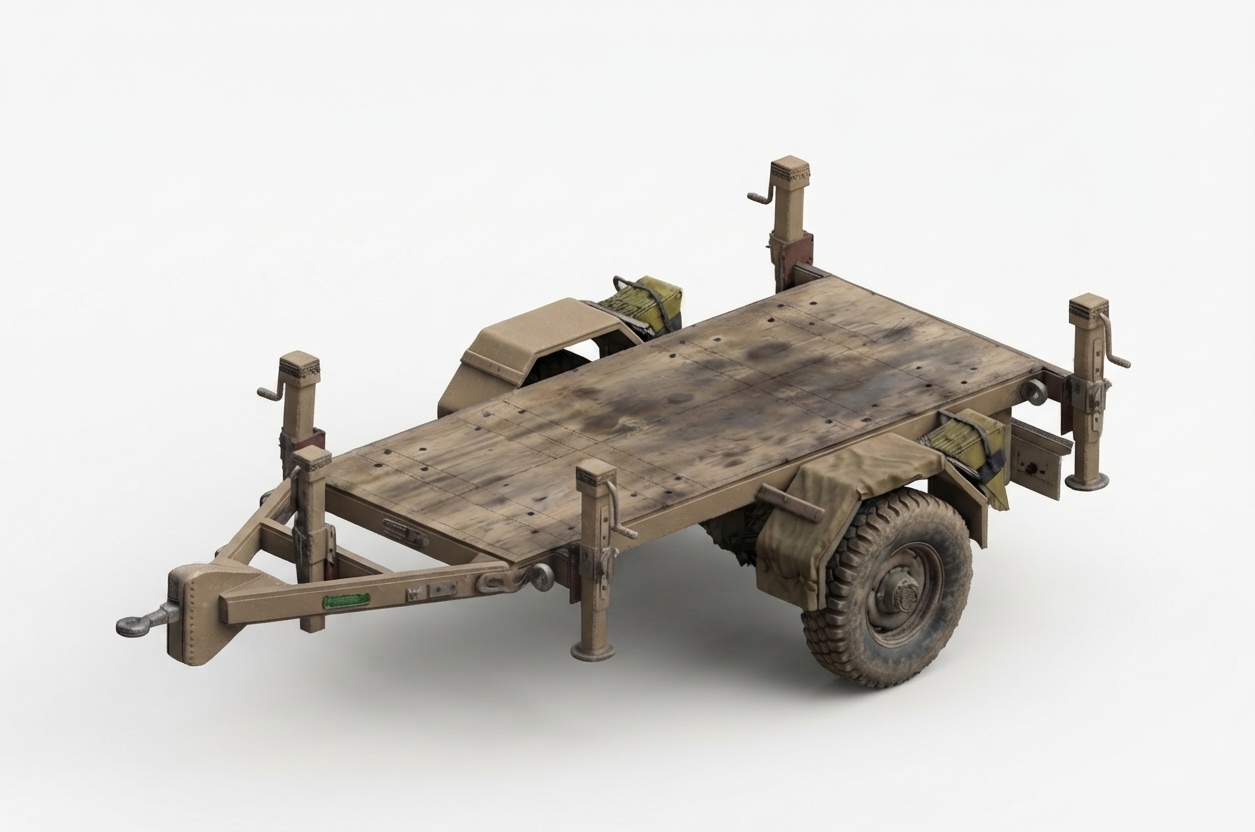

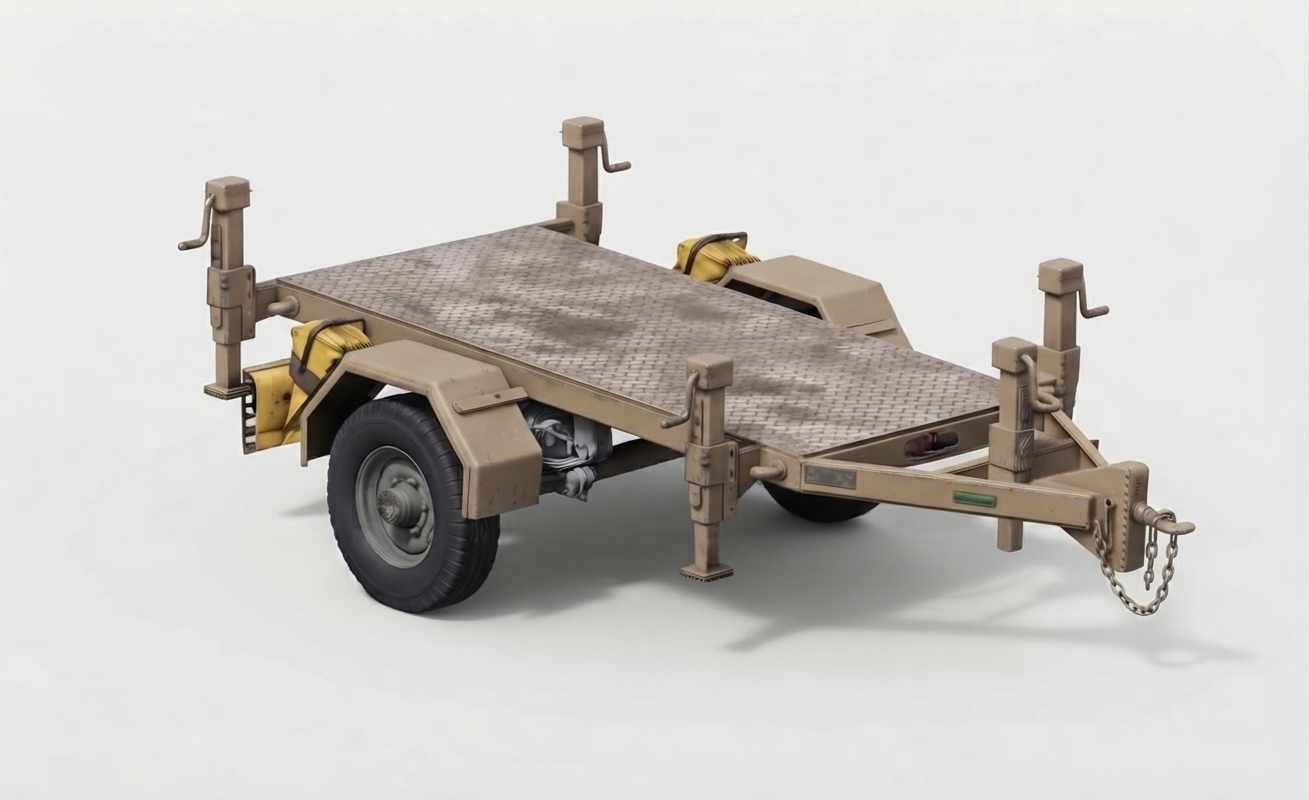

Leveling & Support System: 4x heavy-duty drop-down corner mechanical stabilizer legs (destek ayakları) with wide footplates for zero-sway horizontal positioning on soft terrain, plus a heavy-duty jockey wheel.
-
Chassis & Structure: High-tensile S355 / S700 MC structural steel frame engineered with anti-vibration rubber damper mounting interfaces for generator subframes.
-
Off-Road Wheels & Tires: Oversized military-spec All-Terrain / Mud-Terrain tires (e.g., 265/75 R16, 12.5 R20, or 385/65 R22.5) mounted on 10-hole heavy-duty steel rims.
-
Coating & Paint Finish: Shot-blasted surface treated with 2 coats of anti-corrosive epoxy primer and a Chemical Agent Resistant Coating (CARC) / matte military acrylic topcoat in NATO green, desert tan, or black.
